Restoring a datastore in vCenter: A Step-by-Step Guide

Greetings! If you’ve ever dealt with removing a datastore in vCenter, you know the challenge: the partition table on the linked LUN gets wiped out, often leading to the fear of data loss when trying to reconnect the datastore. In this guide, we’ll walk you through a method to potentially restore a partition table without risking your valuable data.

Important Note: While we provide these steps to help you, please remember that handling partitions requires care. Mistakes could result in data loss not only on the target datastore but also on other storage. Proceed with caution.

1. Identifying the Datastore Path

Start by identifying the path to your datastore. Open vCenter’s web interface, head to the “Host Configure” tab, and select “Storage Devices.”

In our example, the path is: /vmfs/devices/disks/naa.60002ac0000000000000003e00009b09

2. Pinpointing First and Last Blocks

In an SSH session, check current partition table:

partedUtil getptbl /vmfs/devices/disks/naa.60002ac0000000000000003e00009b09

Let’s locate the first and last blocks of the partition.

To find the first block, use this command:

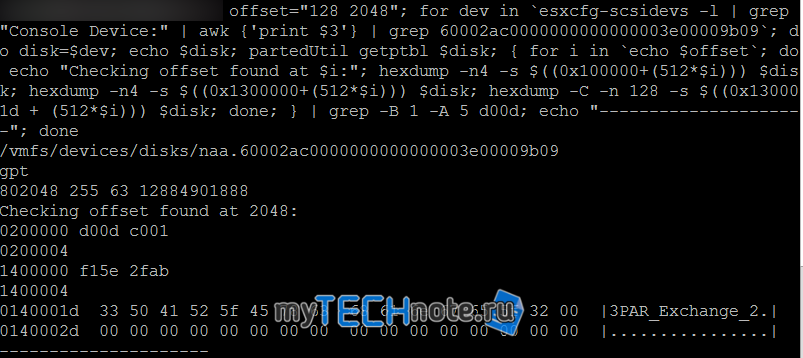

offset="128 2048"; for dev in `esxcfg-scsidevs -l | grep "Console Device:" | awk {'print $3'} | grep 60002ac0000000000000003e00009b09`; do disk=$dev; echo $disk; partedUtil getptbl $disk; { for i in `echo $offset`; do echo "Checking offset found at $i:"; hexdump -n4 -s $((0x100000+(512*$i))) $disk; hexdump -n4 -s $((0x1300000+(512*$i))) $disk; hexdump -C -n 128 -s $((0x130001d + (512*$i))) $disk; done; } | grep -B 1 -A 5 d00d; echo "---------------------"; done

This command should display information about the partition, including its name and offset.

Next, find the last block:

partedUtil getUsableSectors /vmfs/devices/disks/naa.60002ac0000000000000003e00009b09

3. Handling Unknown Partition Table

If you encounter an “unknown partition table” message, attempt this command:

partedUtil mklabel /vmfs/devices/disks/naa.60002ac0000000000000003e00009b09 gpt

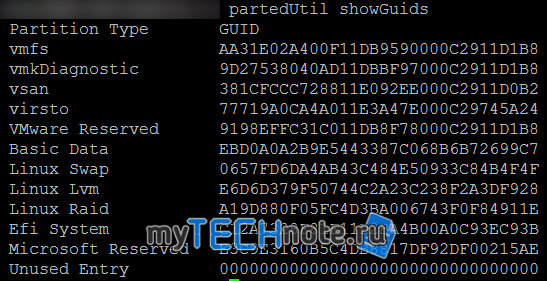

4. Validating VMFS Partition GUID

It’s often AA31E02A400F11DB9590000C2911D1B8, but you can confirm using:

partedUtil showGuids

5. Attempting Partition Restoration

With this information:

LUN ID: naa.60002ac0000000000000003e00009b09

First block: 2048

Last block: 12884901854

Partition GUID: AA31E02A400F11DB9590000C2911D1B8

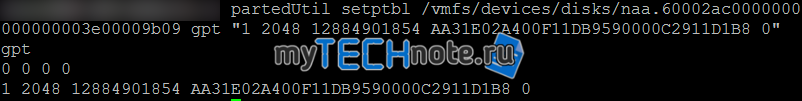

Let’s create a partition marker:

partedUtil setptbl /vmfs/devices/disks/naa.60002ac0000000000000003e00009b09 gpt "1 2048 12884901854 AA31E02A400F11DB9590000C2911D1B8 0"

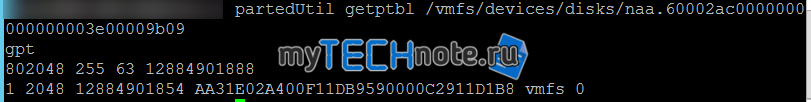

Confirm the table:

partedUtil getptbl /vmfs/devices/disks/naa.60002ac0000000000000003e00009b09

6. Mounting the Datastore

Now, attempt to mount the datastore:

vmkfstools -V
esxcli storage core adapter rescan –all

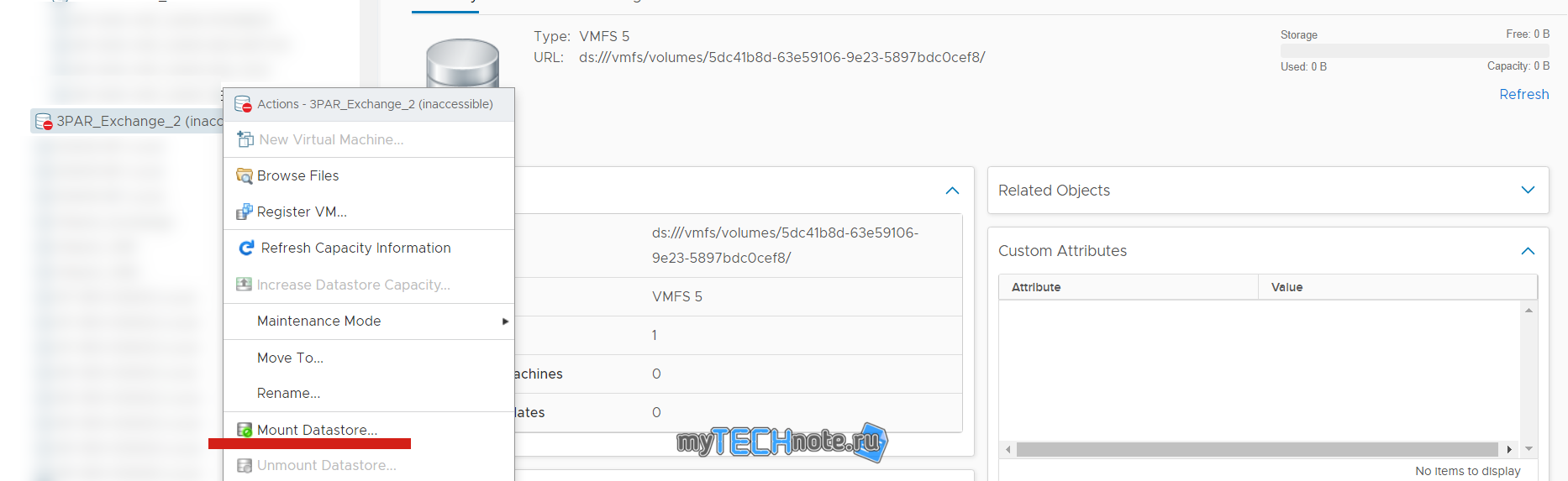

The datastore should now be visible in the vCenter web interface. If it’s unmounted, proceed to remount it.

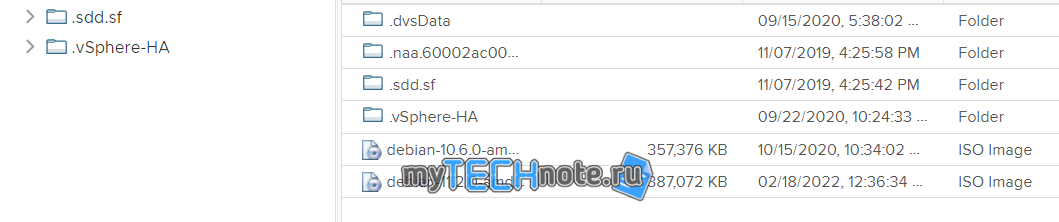

And the data is presented on the datastore.
